Telescopic Sliding Gate
High Speed Doors Manufacturer in india

Telescopic Gate Manufacturers India

SmartTec's Telescopic Gate are specially designed for large entrance openings where back space is limited. Unlike a single sliding gate, telescopic gate consist of two or more panels that slide together in a synchronized movement, allowing the gate to open fully while occupying significantly less side room.

SmartTec's Telescopic gates are ideal for industrial facilities, warehouses, logistics parks, commercial complexes, and high-traffic entry points where fast operation and maximum space utilization are essential.

SmartTec's Telescopic Gates are built with heavy-duty steel fabrication and advance automation systems, SmartTec's telescopic gate delivers smooth performance, strong security, and longer service life even under frequent industrial usage.


Product Specifications

Parameter Specification
Product Type Telescopic Sliding Motorized Gate
Gate Structure Heavy-duty MS Steel Fabrication
Number of Panels 2 Panel / 3 Panel (Customizable)
Operation Synchronized Sliding Movement
Drive System Rack & Pinion Synchronized Mechanism
Track Type Ground Track / Cantilever Option
Finish Powder Coated / Industrial Paint
Opening Width Large Openings with Limited Side Space
Installation Industrial / Commercial Entrances
Application Indoor / Outdoor

Motor Specifications

Parameter Specification
Motor Type Industrial Telescopic Gate Motor
Motor Power 1 HP – 3 HP (depending on gate size)
Power Supply 230V Single Phase / 415V Three Phase
Operating Speed Adjustable
Duty Cycle High-frequency Industrial Usage
Drive Mechanism Geared Motor with Rack System
Manual Override Key Release During Power Failure
Protection Rating IP55 or Higher

Control Panel Specifications

Parameter Specification
Control Type Automatic Control Panel
Operation Modes Auto / Manual / Semi-Auto
Functions Open / Stop / Close
Remote Control RF Remote Transmitter
Safety Inputs Photocell / Safety Sensor Compatible
Protection Overload & Short Circuit Protection
Panel Enclosure Weather-Resistant Metal Housing
Emergency Stop Included

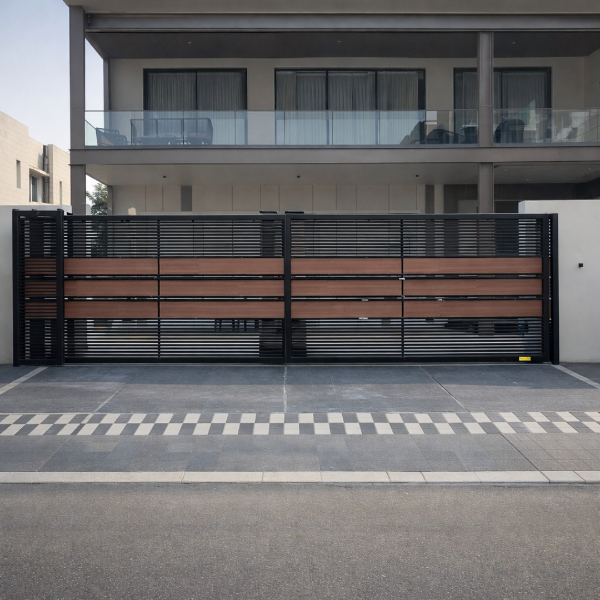

Telescopic Sliding Gate

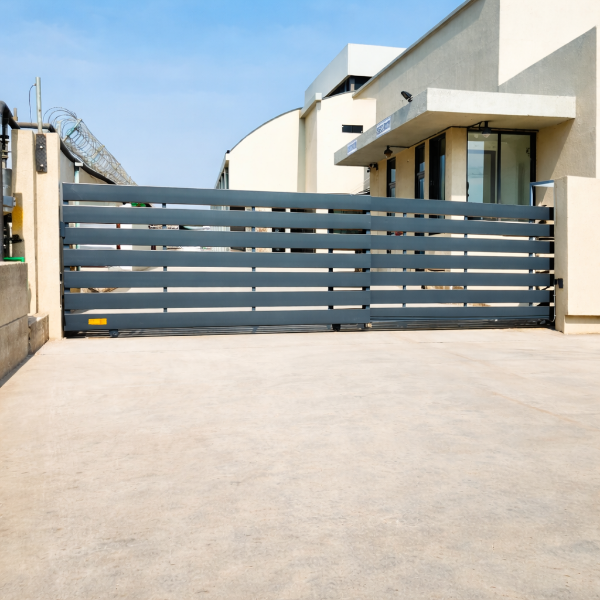

Telescopic Sliding Gate

Telescopic Sliding Gate

Motorized gate & door supplier in gujarat, india

Safety Features

  • Obstacle detection with auto-reverse
  • Smooth synchronized panel movement
  • Soft start & soft stop operation
  • Manual release during power failure
  • Optional warning lamp & safety photocells
  • Stable guide system for secure movement

Key Benefits

  • Ideal for large openings with less side space
  • Faster opening compared to single sliding gate
  • Strong industrial-grade security
  • Smooth synchronized movement
  • Suitable for heavy-duty applications
  • Custom sizes and configurations available
