Roll Up High Speed Doors

Roll Up High Speed Doors Manufacturer

Smartec high-speed doors are specifically engineered for Traffic operation. They open and close quickly In Seconds, reducing the time Of Company employees and vehicles spend waiting for access, thus optimizing workflow and increasing overall productivity. High in Speed & Low in high speed door service.


Safety: high speed door as advanced safety features, such as Motion Detection sensors, safety edges, and photocells. These safety mechanisms detect obstacles and prevent high speed door service collisions, ensuring the protection of Movement and equipment from potential accidents of company.

Durability and Reliability: Smartec robust construction of high speed doors, featuring materials of reinforced fabrics, heavy-duty side frames, and high quality Parts. Emphasize that these high speed door manufacturer doors are built to withstand continuous use in demanding environments, leading to reduced high speed door maintenance costs and longer service life.

Noise Reduction: that high speed door light curtain can contribute to noise reduction in busy industrial Area , creating a more comfortable and quieter work environment for Indstries .

Insulation: If relevant, discuss the insulating properties of flexible bottom high speed door, which can help regulate temperatures & reduce the heating or cooling costs in climate-controlled environments .

Protection of Person & Vehicle Possible obstacles will immediately be detected as the industrial high speed door comes with a well-tested and field proven combination of Many safety devices. In the unlikely event of a crash, the fully flexible curtain and soft bottom High Speed door are designed not to cause any harm & that should be low high speed door maintenance

User-friendly operation types of high speed door are easy to adjust settings and plan high speed door maintenance. The manual release system allows you to open the door quickly in case of an emergency.

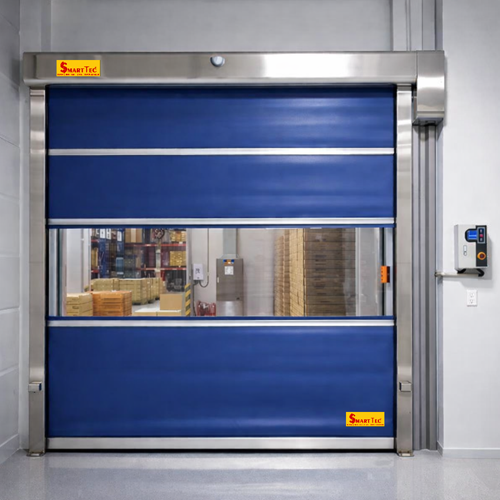

Roll Up High Speed Doors manufacturer

Motor & Control Specifications

Parameter Specification
Motor Type Servo Motor
Motor Power 0.75 kW / 1.5 kW / 3 kW
Maximum Speed Capability Up to 2.0 m/s
Controller Type Intelligent Servo Controller
Operation Modes Manual / Semi-Automatic / Fully Automatic
Speed Control Adjustable opening & closing speed
Push Button Dead-man control, IP65
IR Photoelectric Sensor Obstacle detection, IP67
Safety Edge Sensor Airbag type, IP67
Emergency Stop Yes
Power Supply Single Phase
Application Suitability High-cycle industrial operation


Door Specifications

Parameter Specification
Door Type Roll Up High Speed Door
Curtain Material High Strength PVC
Curtain Thickness 0.9 mm / 1.2 mm (Optional up to 1.5 mm)
Fire Retardant Yes
Tensile Strength 4500 / 4000 N per 5 cm
Tear Strength 450 / 500 N
Transparent Window Clear PVC, 1.2 mm thickness
Opening Speed 0.8 – 2.0 m/s (Adjustable)
Closing Speed 0.8 – 1.5 m/s (Adjustable)
Door Structure Box structure headroom with center axle tube
Frame Construction Side plates with rectangular tube
Wind Resistance Aluminum reinforced girders
Bottom Bar Aluminum double wall with EPDM airtight seal
Guide Channel SS 304 or GI with brush sealing
Certifications CE & TUV
Standard Compliance EN 13241-1
Packing 2 Wooden Packing Set
Curtain Colour Red (RAL 3000)
Blue (RAL 5010)
Orange (RAL 2004)
Grey (RAL 7038)

Component & Finish Details

Component Finish Details
Guide Channel Powder coated, RAL color (customer choice), 80 microns
Hood Cover SS 304 or GI with polyester powder coating, 80 microns
Operator Cover SS 304 or GI with polyester powder coating, 80 microns
Bottom Bar Finish Aluminum double wall with EPDM seal
Corrosion Resistance Suitable for industrial environments

Automation Details

Smart Tec High Speed Doors come with advanced automation options for seamless operation:

  • Push button with dead-man control (IP65)
  • Fully automatic or semi-automatic operation modes
  • Adjustable speed, acceleration & deceleration
  • Auto-close timer function
  • Compatible with additional activation systems such as sensors & access controls
  • Intelligent control panel with safety logic
  • Designed for continuous industrial usage

Safety Features

Safety is a core design principle of Smart Tec doors:

  • IR Photoelectric Sensor (IP67) – prevents door closing if obstruction detected
  • Airbag Safety Edge Sensor (IP67) – instant reverse on contact
  • Emergency stop function
  • Stable door travel with reinforced guide channels
  • Certified to CE, TUV & EN 13241-1 standards

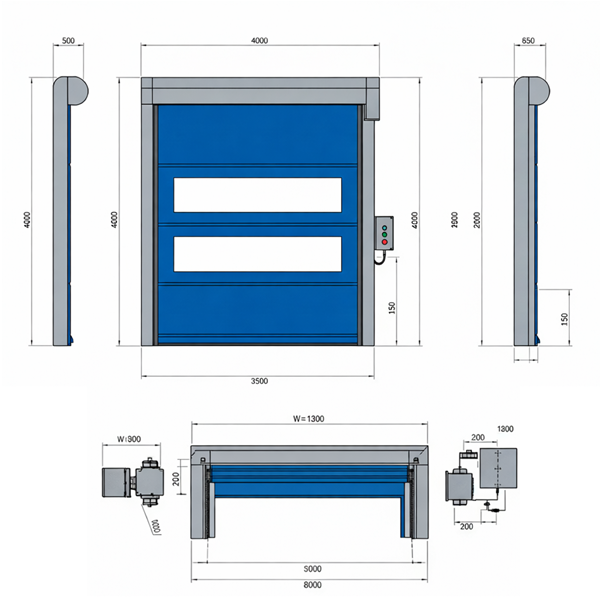

roll-Up High-Speed Doors Suppliers

Roll-Up High-Speed Doors Supplier

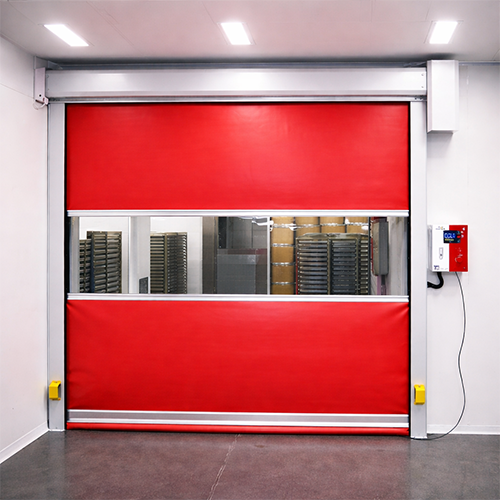

Warehouse rapid roll up door
