Galvalume Rolling Shutter
High Speed Doors Manufacturer in india

Galvalume Rolling Shutter Manufacturer

Secure &Space-Saving Design for Long-Lasting Performance

SmartTec's Galvalume Rolling Shutters are designed & engineered to provide strong, safe, smooth operation, and long lasting durability for industrial or commercial applications. The materials are manufactured using high quality galvos steel, these shutters offer superior resistance against corrosion, rust, and harsh environmental conditions, making them an ideal choice for both indoor and outdoor installations.


The galvos coating on Rolling shutter profiles are combination of aluminum and zinc protection, which significantly increases the life of the shutter compared to conventional MS or GI shutters. This makes them highly reliable for warehouses, factories, loading bays, retail outlets, and industrial facilities where durability and low maintenance are essential or we say the must.


Designed & Engineered with precise profile and strong guide systems, SmartTec's Galvalume Rolling Shutters ensure smooth rolling movement and stable operation even under frequent daily usage. The robust construction of rolling shutter provides excellent security while maintain a clean and professional appearance.


SmartTec's Rolling Shutters can be operated manually or with motorized system, depending on the operational requirements. SmartTec's Rolling Shutters are available in custom sizes and design options which allow seamless integration into different architectural and industrial applications.


Product Specifications

Parameter Specification
Product Type Galvalume Rolling Shutter
Curtain Material High-grade Galvalume Steel
Slat Thickness 0.8 mm – 1.2 mm (as per size requirement)
Slat Profile Interlocking roll-formed slats
Operation Type Manual / Motorized
Guide Channels Heavy duty steel guide rails
Barrel / Shaft High-strength steel pipe
Bottom Plate Reinforced with rubber / EPDM seal
Wind Resistance Suitable for industrial applications
Surface Finish Natural / PU / Powder coated (optional)
Installation Type Exterior / Interior
Size Customized as per opening
Usage Industrial & commercial security

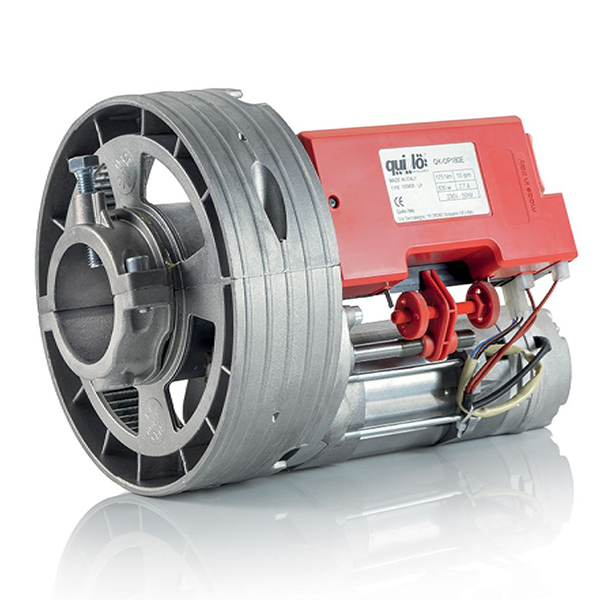

Motor Specifications

Parameter Specification
Motor Type Indirect Drive / Direct Drive (as per shutter size)
Motor Power 0.5 HP – 2 HP (depending on shutter size)
Power Supply 230V Single Phase / 415V Three Phase
Operating Speed Approx. 8–12 RPM
Duty Cycle Suitable for frequent operation
Limit Switch Automatic open/close limit setting
Manual Override Available during power failure
Protection Class Industrial grade

Control Panel Specifications

Parameter Specification
Control Type Push button control panel
Operation Open / Stop / Close
Control Voltage 24V safety control
Panel Enclosure Powder coated metal box
Protection Rating IP55
Safety Features Emergency stop, overload protection
Optional Controls Remote control / Key switch / Sensor integration

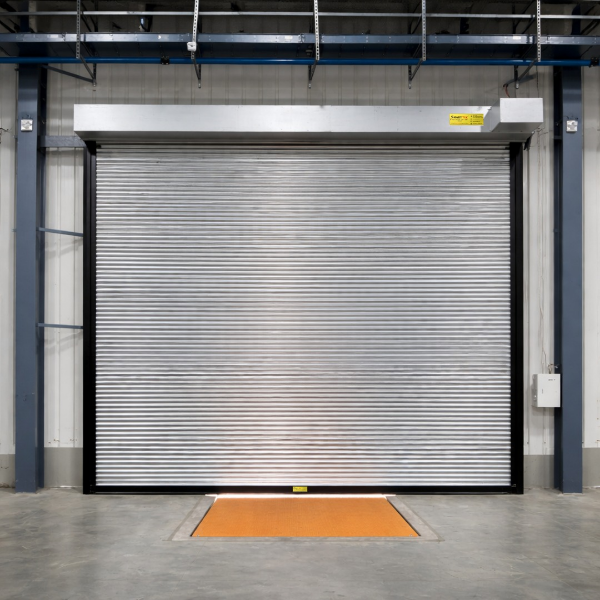

Automatic galvalume rolling shutters manufacturer

Automatic galvalume rolling shutters manufacturer

Automatic galvalume rolling shutters manufacturer

Automatic galvalume rolling shutters manufacturer

Automatic galvalume rolling shutters manufacturer

roll-Up High-Speed Doors Suppliers

Safety Features

  • Anti drop protection system
  • Emergency manual operation
  • Stable side guide movement
  • Bottom safety edge (optional)
  • Overload motor protection
  • Smooth and controlled movement

Key Benefits

  • Excellent corrosion resistance due to galvalume coating
  • Heavy duty construction for long life
  • Low maintenance and reliable performance
  • Suitable for indoor and outdoor installations
  • Smooth and quiet operation
  • Custom sizes and automation options available
