Fold Up High Speed Doors

Smarttec Fold-Up High-Speed Doors


Smart Tec Fold Up High Speed Doors are designed for large openings and heavy duty industrial environments where strong wind resistance and fast operation are required.

The fold up Doors uses horizontal reinforcement bars that allow the curtain to fold upward while maintaining structural stability and heavy wind support. These doors are ideal for external openings, loading bays, manufacturing plants, and logistics centers.

  • Suitable for large size openings
  • Strong wind resistance with horizontal reinforcement bars
  • High speed opening & closing (up to 1.2 m/s)
  • Heavy duty PVC curtain
  • Stable structure for external installation
  • Low maintenance & long service life
  • Servo motor driven system

Key Benefits of Fold-Up High-Speed Doors


  • Better wind resistance than roll up door
  • Ideal for very wide openings
  • Durable under heavy duty usage
  • Reduced air infiltration
  • Suitable for exterior conditions

An accessible manual release system allows you to quickly open the door in case of an emergency

Fold Up High Speed Doors manufacturer

Fold Up High Speed Doors manufacturer in India

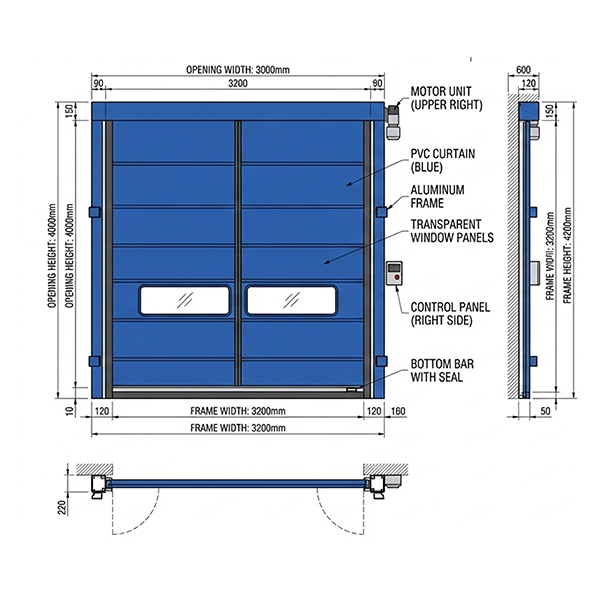

High Speed Fold-Up Door Specifications

Parameter Specification
Door Type High Speed Fold-Up Door
Curtain Material Industrial PVC Fabric
Curtain Thickness 1.0 mm – 1.5 mm
Reinforcement Aluminum / Steel horizontal wind bars
Opening Speed 0.6 – 1.5 m/s (Adjustable)
Motor Type Servo Motor
Motor Power 0.75 kW / 1.5 kW (depending on size)
Max Door Size Suitable for large industrial openings
Wind Resistance High (External application suitable)
Bottom Seal EPDM airtight seal
Frame Heavy-duty steel structure
Finish Powder coated (RAL color optional)
Compliance CE & EN 13241-1

Fold-Up High-Speed Door Features

Feature Details
Control System Intelligent servo controller
Operation Mode Manual / Automatic
Speed Control Adjustable opening & closing
Auto Close Timer Available
Activation Options Push button / Radar / Remote
Power Supply 3 Phase (for large size doors)
Emergency Stop Yes

Safety Elements of Fold-Up High-Speed Door

Safety Element Function
IR Photoelectric Sensor Obstacle detection
Bottom Safety Edge Reverses door on contact
Wind Lock System Prevents curtain displacement
Emergency Manual Override Available
Stable Guide Rails Heavy-duty side frame support
Self Repairable High Speed Doors

Automation Details

Smart Tec Fold Up High Speed Doors are equipped with advanced automation systems designed for reliable and efficient operation in demanding industrial environments:

  • Push button operation with dead‑man control (IP65 rated)
  • Supports automatic as well as semi‑automatic operating modes
  • Variable speed settings with adjustable acceleration and deceleration
  • Auto closing timer to maintain operational efficiency and workflow
  • Compatible with multiple activation devices such as sensors, radar systems, and access control units
  • Advanced control panel with integrated safety monitoring system
  • Designed for continuous high‑cycle industrial applications

Safety Features

Safety is a key design focus of Smart Tec Fold Up High Speed Doors, ensuring secure and reliable performance in demanding industrial environments:

  • Infrared Photoelectric Sensor — detects obstacles and prevents the door from closing when an obstruction is present
  • Flexible Bottom Safety Edge — automatically reverses the door movement if contact occurs
  • Wind Locking System — helps maintain curtain stability and prevents displacement during strong air pressure
  • Emergency Manual Operation — allows manual control during power failure situations
  • Heavy Duty Guide Rails — reinforced side frames provide stable and smooth door movement
