Smarttec Clean Room High Speed Door

Name: Clean Room High Speed Door Manufacturer Gujarat
Brand: SmartTec
SKU: 115
Rating: 5 (100 reviews)

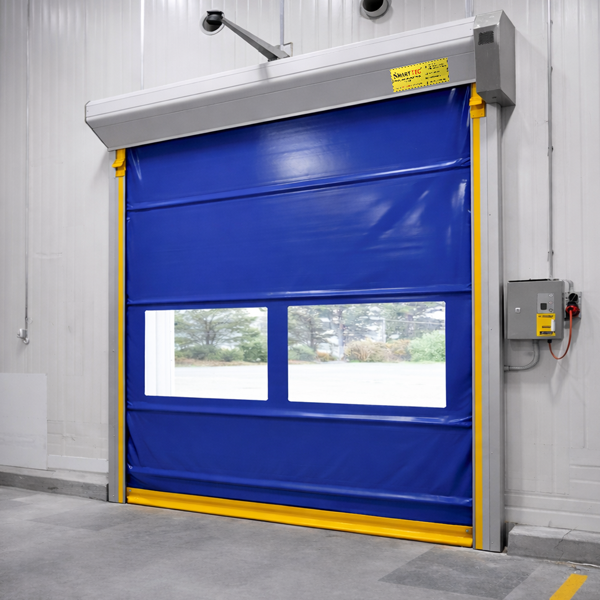

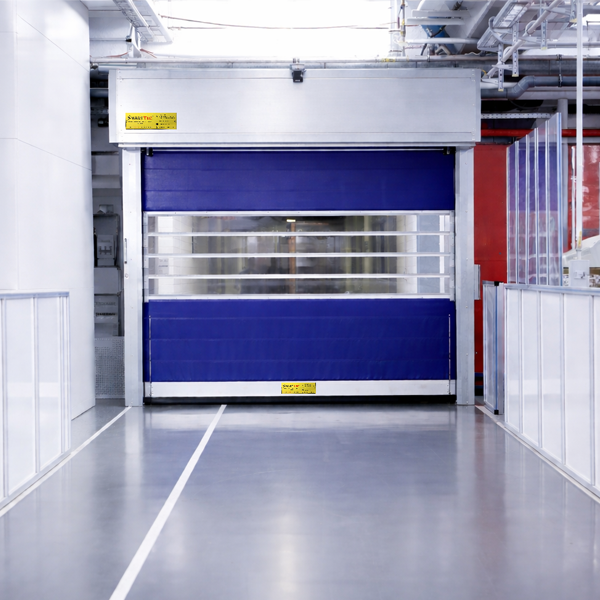

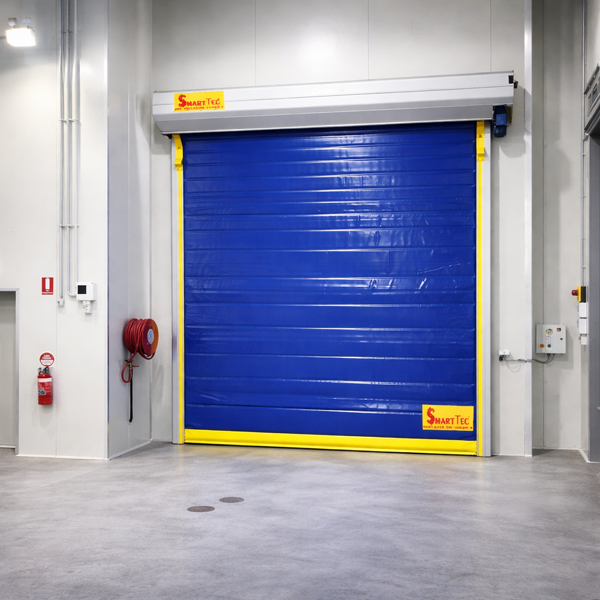

Smart Tec High Speed Clean Room Doors are specially engineered for controlled environments where hygiene, pressure control, and contamination prevention are critical.

Designed for pharmaceutical plants, food processing units, electronics manufacturing, laboratories, and hospitals, these doors help maintain clean room integrity by minimizing air leakage and particle infiltration while allowing fast movement of personnel and materials.

Smooth & high-speed operation (0.8 – 1.5 m/s)
Airtight sealing to maintain pressure difference
Anti-dust & anti-static PVC curtain option
SS 304 structure for hygiene compliance
Easy-to-clean smooth surface design
Low noise & vibration-free operation
CE & EN 13241-1 compliant

Protection of people & goods

Possible obstacles will immediately be detected as the SMARTTEC High Speed Door Clean Room comes with a well-tested and field proven combination of 2 safety devices with high IP grade. In the unlikely event of a crash, the fully flexible curtain and the soft bottom are designed not to cause any harm. The self-reinserting function of the curtain reduces the risk of downtime after a crash and makes this door the perfect solution for a smooth and trouble-free process flow!

An accessible manual release system allows you to quickly open the door in case of an emergency

Clean Room High Speed Doors manufacturer

Clean Room High Speed Doors manufacturer in India

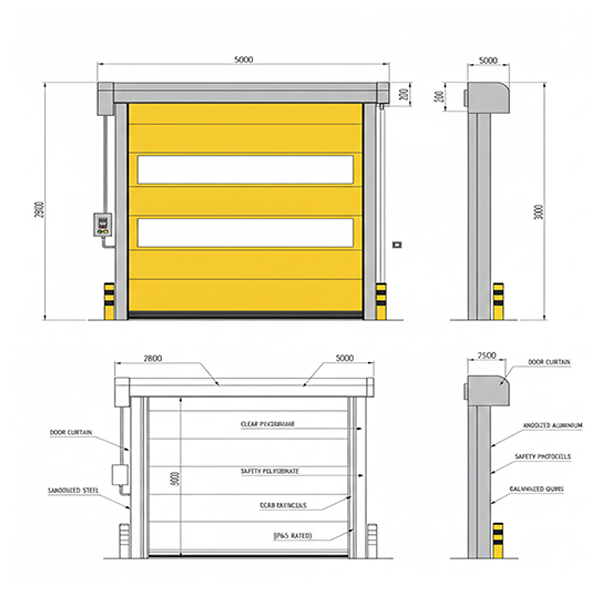

Clean Room High Speed Roll-Up Specifications

Parameter	Specification
Door Type	High Speed Roll-Up (Clean Room Model)
Curtain Material	Anti-static PVC
Curtain Thickness	0.9 mm / 1.2 mm
Transparent Panel	1.2 mm clear PVC
Opening Speed	0.8 – 1.5 m/s (Adjustable)
Motor Type	Servo Motor
Motor Power	0.75 kW
Frame Material	SS 304 Stainless Steel
Guide Channel	SS 304 with brush sealing
Bottom Seal	EPDM airtight seal
Sealing System	Full perimeter sealing
Control System	Intelligent servo controller
Certification	CE / TUV
Standard	EN 13241-1

Features of High Speed Clean Room

Feature	Details
Operation Mode	Manual / Fully Automatic
Activation Options	Push button / Radar / Access Control
Auto-Close Timer	Adjustable
Pressure Resistance	Suitable for positive/negative pressure rooms
Sensors	IR Photoelectric (IP67)
Safety Edge	Airbag type bottom sensor
Emergency Stop	Yes
Power Supply	Single Phase 200–240V

Clean Room High Speed Finish Details

Component	Finish
Frame	SS 304 Satin Finish
Hood Cover	Powder Coated / SS 304
Operator Cover	Powder Coated
Coating Thickness	80 microns
Color Option	RAL (On Request)

Automation Details

Smart Tec Clean Room High Speed Doors are designed with advanced automation features to ensure smooth, hygienic, and reliable operation in controlled environments:

Push button operation with dead man control (IP65 rated)
Supports both fully automatic and semi automatic operating modes
Variable speed control with adjustable acceleration and deceleration
Auto closing timer to maintain controlled room conditions
Compatible with multiple activation devices such as sensors, radar units, and access control systems
Intelligent control system with integrated safety management
Engineered for continuous operation in high traffic clean room environments

Safety Features

Safety is a key priority in the design of Smart Tec Clean Room High Speed Doors, ensuring reliable and secure operation in controlled environments:

Infrared Photoelectric Sensor (IP67) – detects obstacles and prevents the door from closing when any obstruction is present
Airbag Bottom Safety Edge (IP67) – immediately reverses door movement upon contact
Emergency stop switch for instant shutdown during critical situations
Smooth and stable door movement supported by reinforced side guide rails
Manufactured in accordance with CE, TUV & EN 13241 1 international safety standards
