What are high-speed doors?

High-speed doors are rapid-opening and closing doors used in industrial and commercial settings to facilitate efficient traffic flow while maintaining environmental control.

What are rolling shutters?

Rolling shutters are vertical rolling doors typically made of metal or aluminum slats that provide security and protection for windows, doors, and storefronts.

What is a sliding gate?

A sliding gate is a type of gate that operates horizontally along a track, typically used for controlling access to driveways, entrances, or parking lots.

What is a dock leveler?

A dock leveler is a piece of equipment used in loading docks to bridge the height difference between a truck bed and the dock floor, enabling safe and efficient loading and unloading of goods.

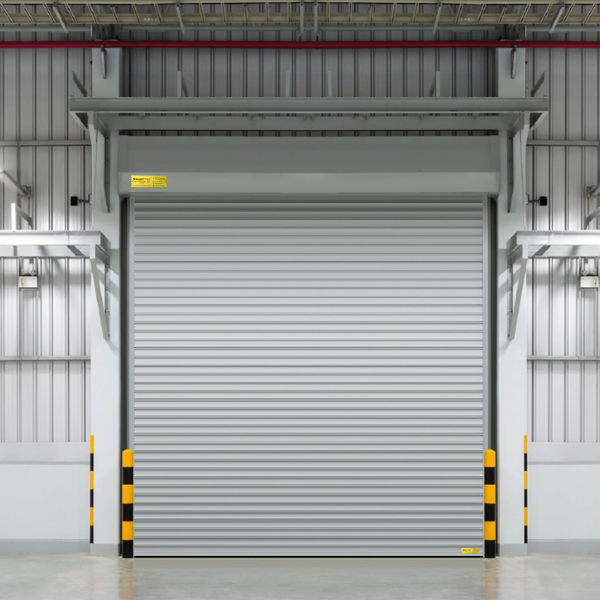

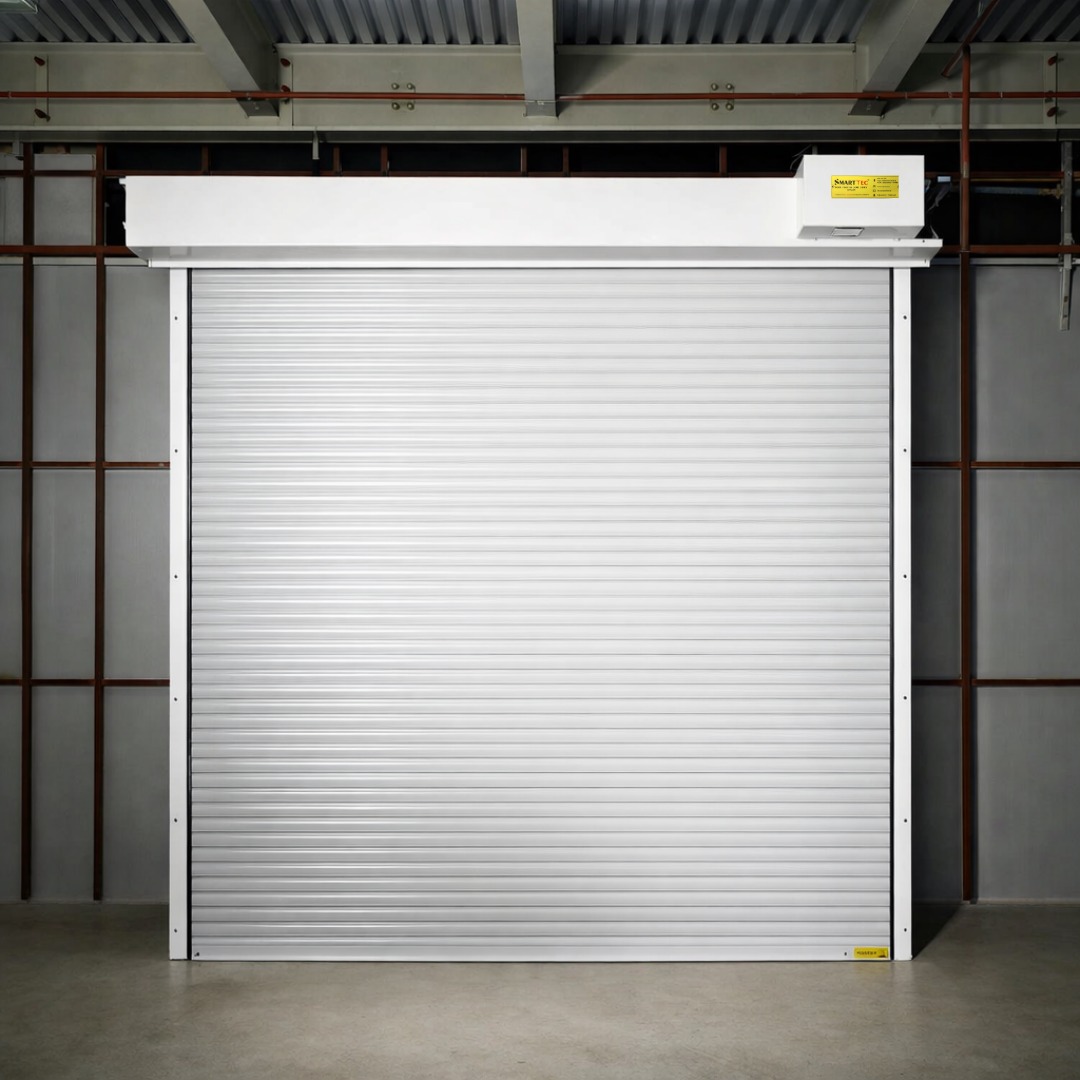

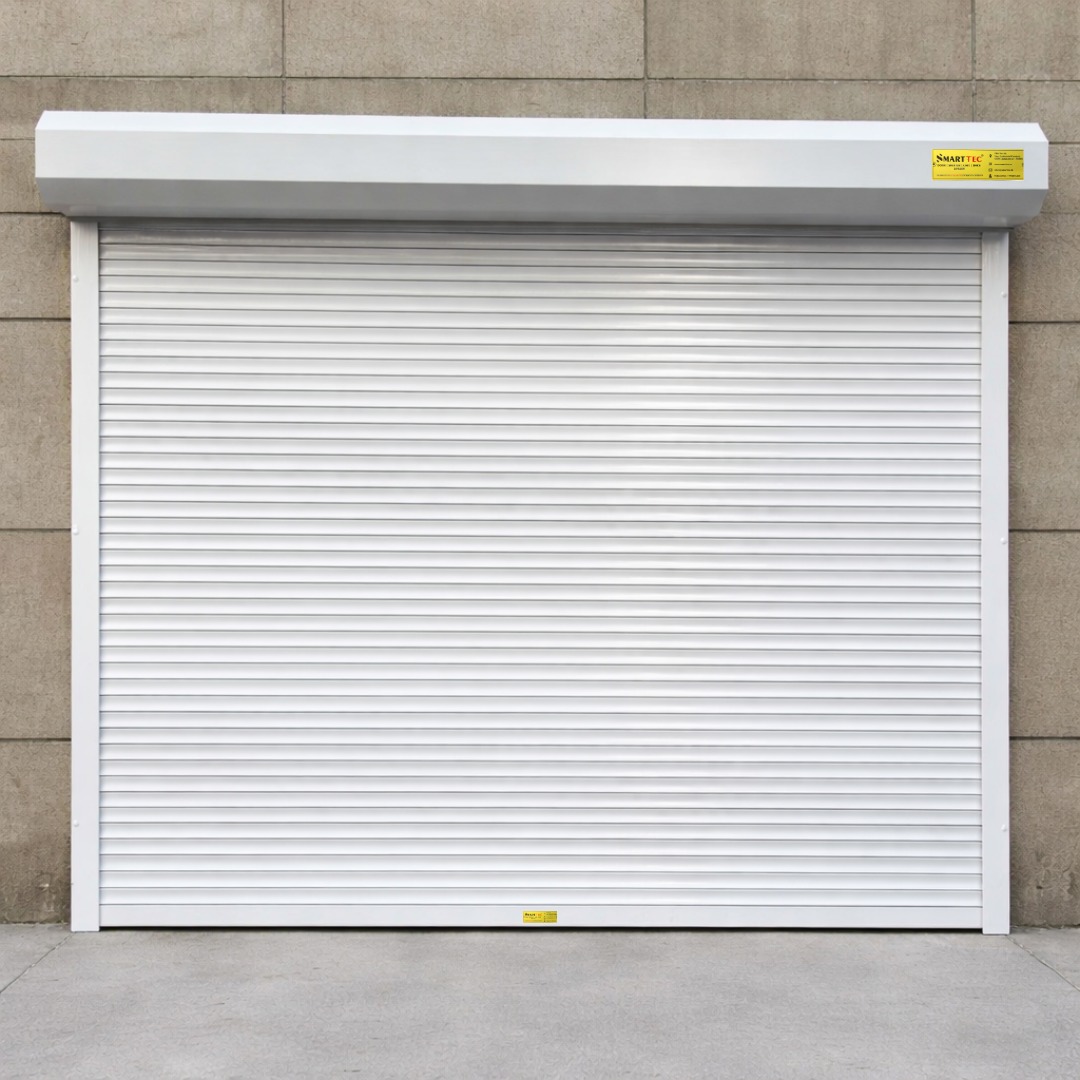

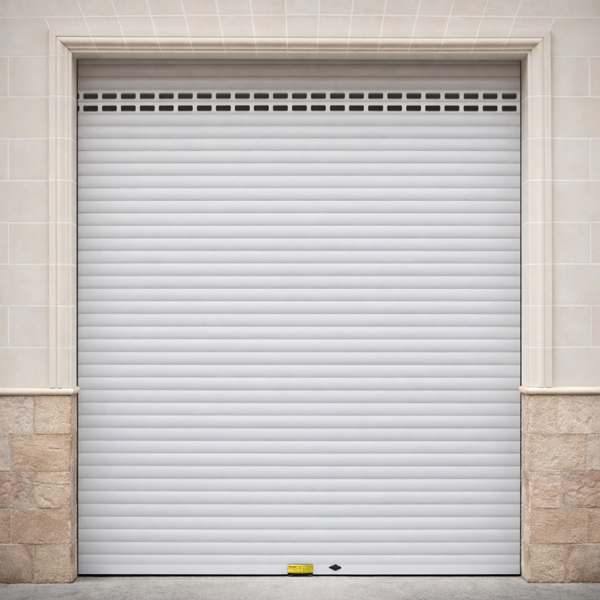

Aluminium Rolling Shutter Manufacturer

Name: Aluminium Rolling Shutter Manufacturer in India
Brand: SmartTec
SKU: 115
Rating: 5 (100 reviews)

SmartTec's Aluminium Rolling Shutter are designed to deliver a better combination of security, safety, smooth operation, durability, and modern aesthetic for commercial and industrial application. SmartTec's Aluminium Rolling Shutter are Manufactured using high-grade aluminium profiles, these shutters are lightweight, strong, ensuring long service life with minimum maintenance.

Aluminium is normally rustfree and corrosionfree, making these type shutters ideal for both indoor and outdoor installations. Due to their light weight compared to steel shutters, they offer smoother movement, reduced motor load, and quieter operation perfect for showrooms, malls, warehouses, offices, and commercial complexes.

Product Specifications of Aluminium Rolling Shutter

Parameter	Specification
Product Type	Aluminium Rolling Shutter
Curtain Material	Extruded / Roll-formed Aluminium
Slat Thickness	1.0 mm – 1.5 mm (as per requirement)
Slat Type	Interlocking aluminium profiles
Operation Type	Manual / Motorized
Guide Channels	Aluminium / MS heavy-duty guides
Bottom Rail	Reinforced aluminium with rubber seal
Barrel / Shaft	Heavy-duty steel pipe
Surface Finish	Powder Coated / Anodized
Corrosion Resistance	Excellent (Rust-free material)
Installation	Indoor / Outdoor
Size	Fully customized as per opening

Motor Specifications of Aluminium Rolling Shutter

Parameter	Specification
Motor Type	Side Motor / Tubular Motor
Motor Power	0.5 HP – 1.5 HP (depending on shutter size)
Power Supply	230V Single Phase / 415V Three Phase
RPM	Approx. 8 – 12 RPM
Duty Cycle	Suitable for frequent operation
Limit Switch	Adjustable open & close limits
Manual Override	Available in case of power failure
Protection Class	Industrial grade

Control Panel Specifications

Parameter	Specification
Control Type	Push Button Control Panel
Functions	Open / Stop / Close
Control Voltage	24V Safety Control
Panel Enclosure	Powder Coated Metal Box
Protection Rating	IP55
Safety Features	Overload & Short-Circuit Protection
Optional Controls	Remote / Key Switch / Sensor Integration
